JWI-580W

PROFESSIONAL TABLET

Power, connectivity, and durability, all in one compact device.

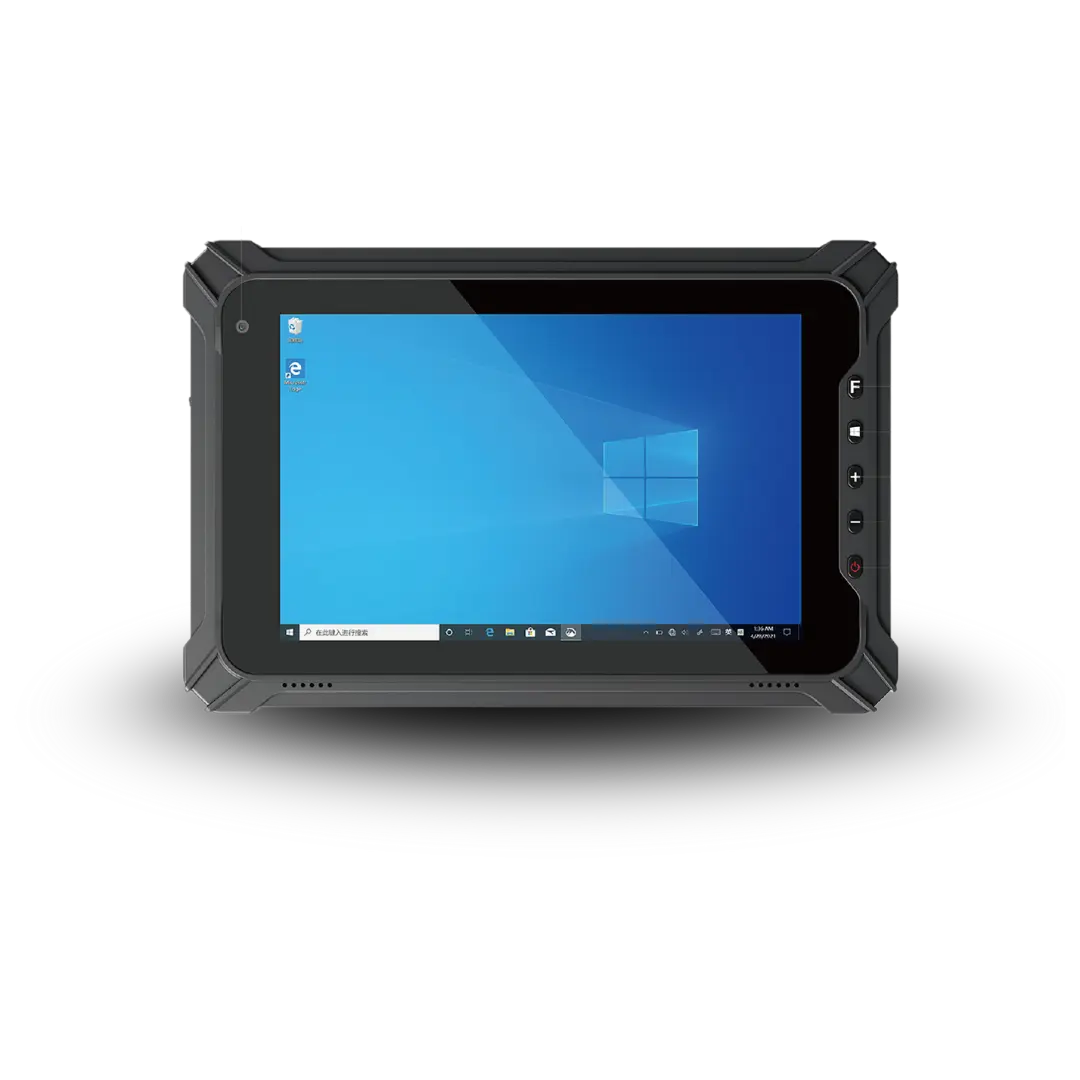

The JWI-580W is the 8" rugged tablet by Jassway designed for harsh environments and high-intensity operations. With Windows 10 or 11 operating system and an Intel Jasper Lake N5100 processor, it ensures smooth performance even with complex management software or specialized applications. It’s an ideal solution for technical inspections, field maintenance, logistics, transportation, industry, and public utilities.

This handheld device combines an ultra-rugged structure with comprehensive connectivity: dual-band Wi-Fi, Bluetooth 4.2, 4G LTE, and GPS, GLONASS, and BeiDou modules. The 8" Full HD screen with 550 nits ensures clear visibility even in direct sunlight. The IP65 protection and MIL-STD-810G certification make it suitable for dust, splashes, and accidental drops.

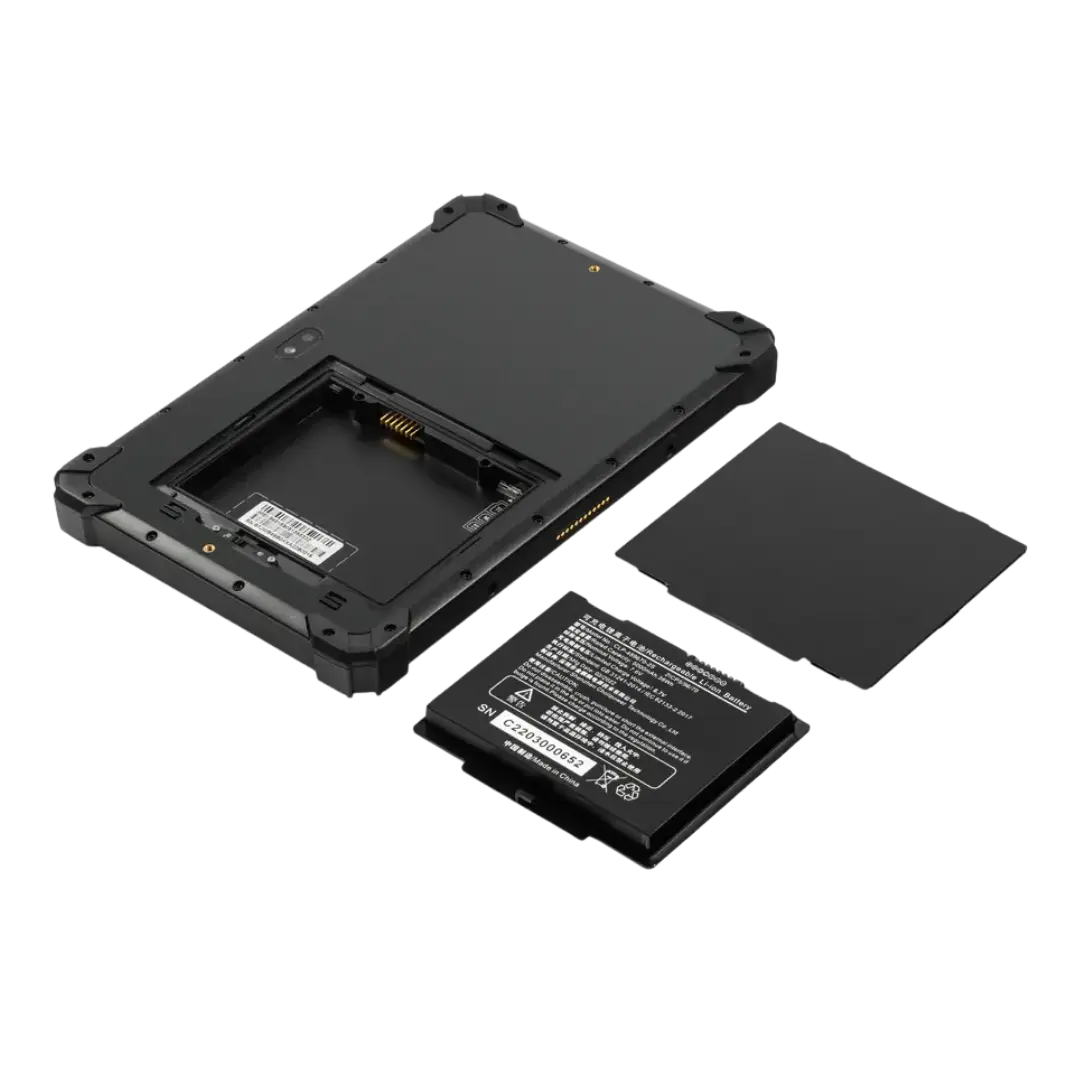

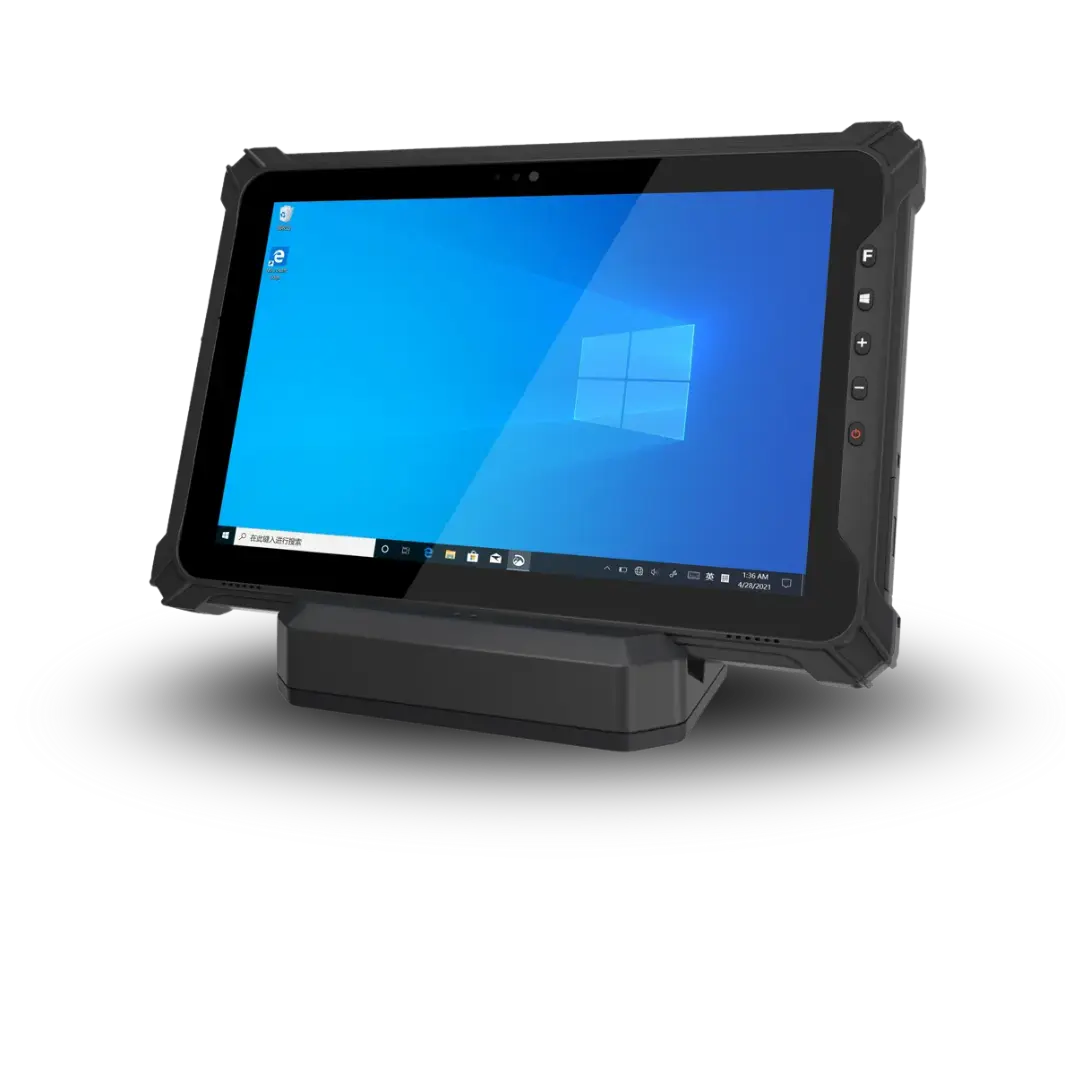

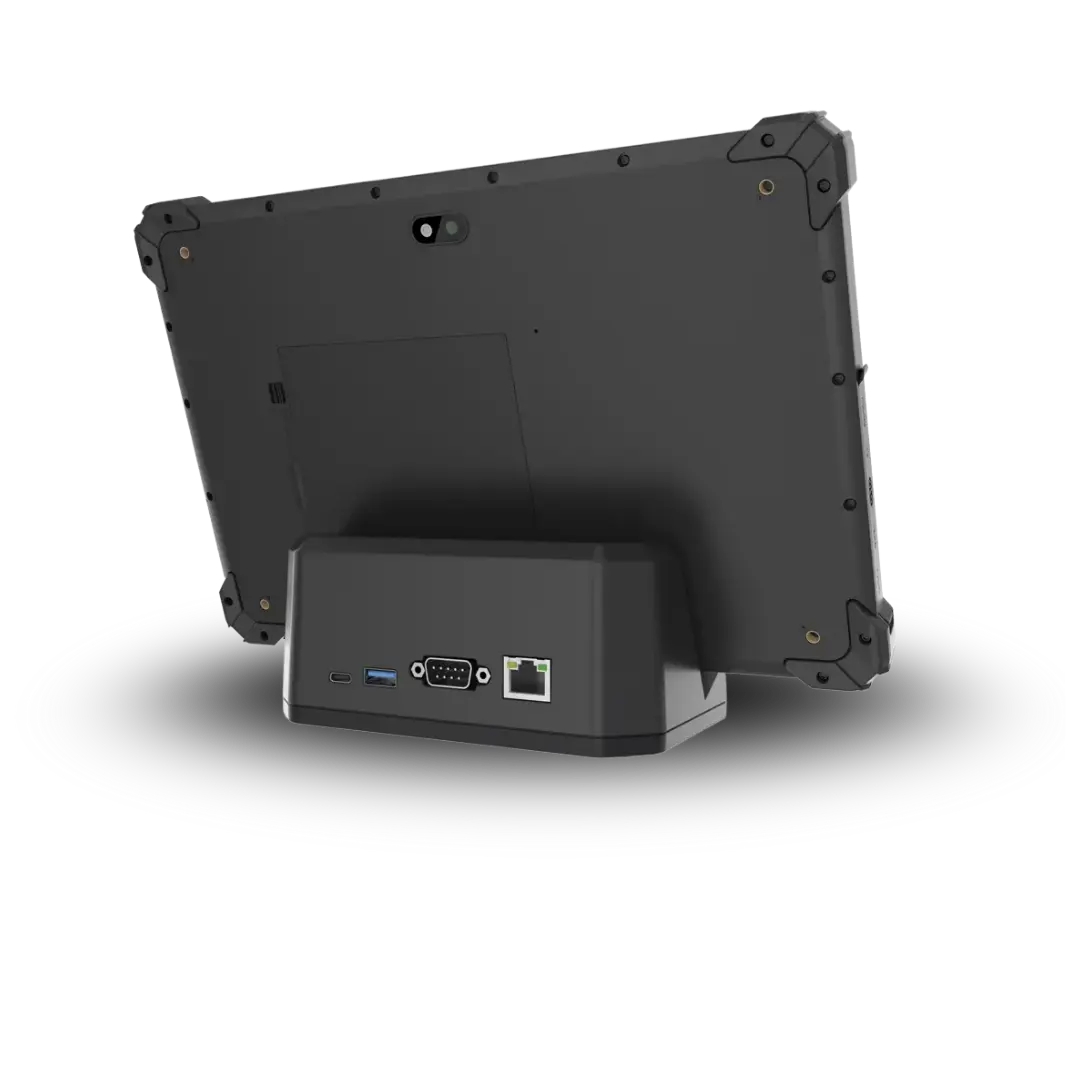

It can be equipped with a Honeywell 2D scanner, NFC reader, and charging dock, offering flexibility and customization for every type of operator. The 5000 mAh battery ensures long-lasting autonomy, supporting full shifts without interruptions.

The JWI-580W is the ideal device for those seeking a powerful, compact Windows tablet designed to handle the toughest working conditions. For resellers, it is a premium offering to include in their catalog for clients operating in industrial or field technical environments, with high expectations for reliability and durability.

DO YOU WANT TO BECOME AN OFFICIAL JASSWAY DISTRIBUTOR?


Become partner     or     Ask for more info

Technical Specifications

SYSTEM

  • Processor Intel Jasper Lake N5100
  • Storage 4GB DDR4L+64GB Flash (8GB+128GB optional)
  • Operating System
    Windows 10/11 (home or PRO)
  • GSM (2G)
    900/1800 MHz
  • WCDMA (3G)
    B1-B5-B8
  • 4G LTE
    FDD - B1-B3-B5-B7-B8-B20
  • TDD - B40

INTERFACE

  • Display 8" TFT display
  • Resolution 1200x1920
  • Aspect Ratio 16:10
  • Brightness 550 cd/m²
  • USB 1xUSB 3.0,1 Type-C
  • HDMI 1xHDMI 1.4a
  • Speaker Dual waterproof front speaker 8Ω / 0.8W
  • Battery 7.6V/500 mAh (full charge in 4 hours with 19V/3.42A)
  • Dimensions (WxHxD) 236,7x155,7x20 mm
  • Net Weight 910 g

PERIPHERALS

  • Wi-Fi 802.11 a/b/g/n/ac - Dual band 2.4 GHz/5.8GHz - Chipset Intel 3165D2WG
  • Navigation GPS/BeiDou/GLONASS
  • 2D Scanner Honeywell N4680 (optional, N3680 also available)
  • Bluetooth 4.2
  • Front Camera 5 MP
  • Rear Camera 8 MP (USB) con flash automatico
  • MicroSD Expansion TF card up to 512GB

DURABILITY

  • Water Resistance IP65
  • Drop Resistance MIL-STD-810G
